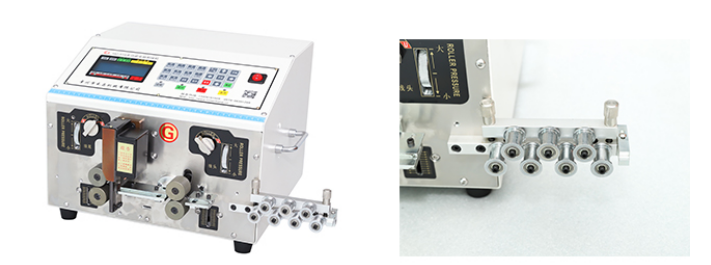

Automatic computer strip machine(flat cable)
Apr 13, 2021|
View:152This machine can completely finish cutting ,peeling,sorting for some flat cables (colored cable, grey cable ,red and white cable, blue and white cable) double combined wire at one time,the sorting and length of the stripping head can be set by any pressed key.
Model | HC-515G |
Dimensions | L750*W480*H308mm |
Weight | 45kg |
Display | English interface |
Power supply | 220V/500W |
cutting length | 0.1mm-99999.99mm |
stripping length | 1mm -30mm |
Cutting Range | 24#1-12 pin;26#1-15 pin;18#1-20 pin |
Wire Material | flat wire, double to combine wire, unifilar,FFC, RFC |
Incise tolerance | Within 0.002*Lmm |
Conduit diameter | 1-10mm,1-25mm |
Driving way | Four-wheel drive, independent drive box driver |
productivity(pcs/min) | 48pcs/min |
Tool angel material | High speed steel/tungsten steel |
