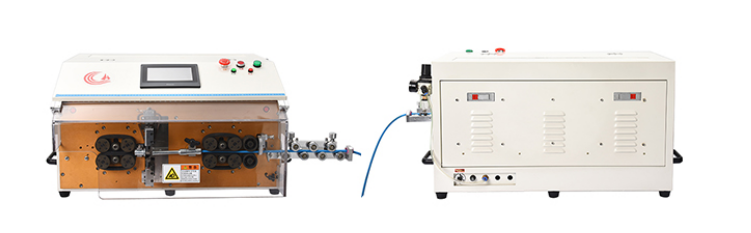

HC-608F3 Large cable automatic cut and strip machine
This machine is mainly used in auto industry, sensor industry, electricity industry,, electrical cabinet, wires in battery holder, it can cut and strip the whole wire to the required length and required strip head, without harm on the skin and conductor, the idler wheel makes it good to feeding, thus improving the efficiency.
Cutting length | 0.5mm-99999.99mm( leave middle skin more than120mm) |
Front end stripping length | Sheathe wire Max 300mm/strip off cable Max30mm |
Back end stripping length | Sheathed wire Max 180mm/strip off cable Max50mm |
Back end stripping length(double sheathed wires) | Outer sheath 25mm-140mm,core wire 1-15mm |
Wire stripping range | The diameter of 608F3 sheathed wire can reach 12mm |
Wire type | Sheathed wire, pvc,Teflon wire,glass thread,telephone wire. |
Conduit diameter | 1-12mm |
Driving mode | Idler wheel feeding,eight wheel drive,independent drive box drive. |
Productivity(pcs/h) | 1000pcs/h |
Air Pressure | 0.5-0.75MP |
