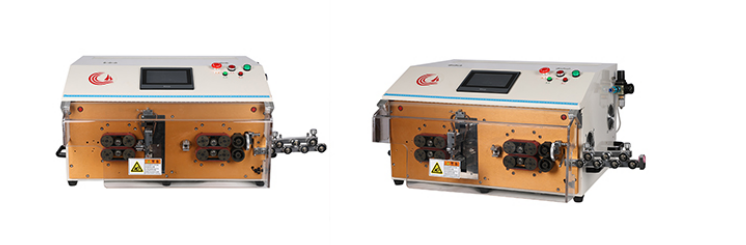

HC-608K1 Double Sheathed Wire Strip Machine
Apr 23, 2021|View:157
This machine can cut and strip the outer sheathed wire and inner core wire at the same time,less processing,high efficiency.
Cutting length | 0.5mm-99999.99mm( leave middle skin more than100mm) |
Front end stripping length | Outer sheath Max ;inner core wire skin Max 30mm |
Back end stripping length | Outer sheath Max 100mm;inner core wire skin Max 30mm |
Wire stripping range | Outer diameter Max 12mm, inner core wire:5 pcs |
Wire type: | multicore jacket wire and multicore electric cable |
Conduit diameter | 1-12mm |
Driving mode | belt feeding,12-wheel drive,independent drive box drive. |
Productivity(pcs/h) | 700pcs |
Feeding mode | Belt feeding,no embossing and scratching on the wires. |
