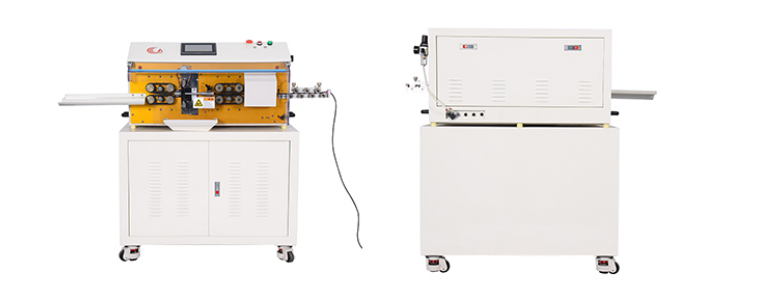

HC-608XK Automatic rotary cutting and stripping machine for multi-layer(with moveable knife)
1.This machine adopts servo drive control ensures precisely feeding and stripping.Rotary cutting mode can strip multi-layers flush, the moveable knife holders can hold 2 set knives,and there is no need to change knives, it is optional to set the rotary stripping or direct stripping mode.Specifications and procedures of the processing can be well saved in the system, only few minutes searching can find the saved data which saves a lot of time for directly processing, thus improving the efficiency and effect.
2.It is mainly for materials used in new energy field,such as motor , layout-line, cables in the battery holder for electric car. Charging pile and charging, electronic control,high or low voltage wire in BMC.
3.The function of the equipment can be upgraded by installing printing,stripping and other functions.
Cutting length | 10-100000mm |
Front/back end stripping length | Front end:1-200,back end :1-130mm |
Wire stripping range | 10-120mm²,auto adjustment for core,there is no need to change knives when strip different kinds of wire. |
Strip layers | 1-8 layers |
Wire type | New energy wire,cables, coaxial cable,power-line etc |
Conduit diameter | 8-27mm |
Driving mode | Servo drive |
Cut and stip mode | rotary cutting and stripping |
Blade | 4pcs imported high speed steel, 2 pcs tungsten steel |
Productivity(pcs/h) | Productivity differs according to the operating procedure and the operating line.Min at 400-900pcs /h |
Feeding mode | Belt feeding,no embossing and scratching on the wires. |
Leaving skin for middle strip | 240mm |
