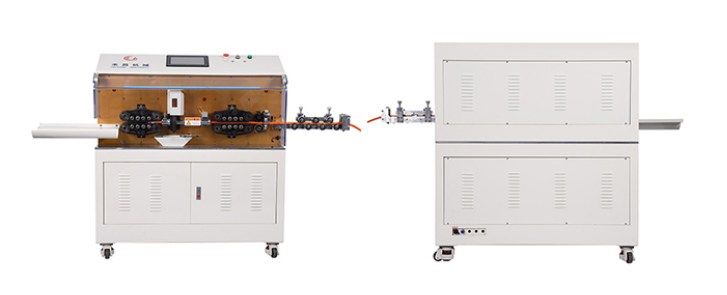

HC-608XL Computer stripping machine for large cables
May 05, 2021|
View:123This machine is mainly used in auto industry, sensor industry, electricity industry, electrical cabinet, wires in battery holder, it can cut and strip the whole wire to the required length and required strip head,applicable for BV hard wire and BVR Soft wire ,it can cut and strip max to 120 mm²，thus improving the efficiency.
Cutting length | 1-99999.99mm,leaving middle strip skin more than 200mm |
Front end stripping length | Jacket wire Max 300mm/electric cable Max 70mm |
Back end stripping length | Jacket wire Max 200mm/electric cable Max 100mm |
Wire stripping range | 10-120mm² |
Wire material | Electric wire,jacket wire,PVC, Teflon wire,glass wire, telephone wire |
Conduit diameter | 9-25mm |
Driving mode | Belt feeding,24- wheel drive,independent drive box drive |
Productivity(pcs/h) | 600pcs |
Feeding mode | Belt feeding,no embossing and scratching on the wires. |
