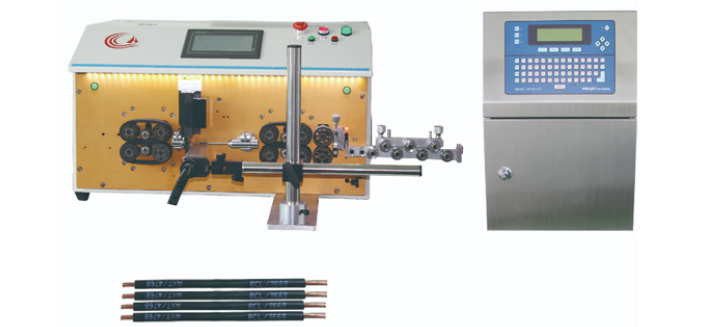

HC-608PMJ Computer stripping and printing machine
Apr 28, 2021|
View:152This machine can finish cutting,stripping and code-spurting completely,the number printed and the printed position can be set optionally,there is no need to add cable marker when processing the secondary line of the control cabinet,conveniently wiring inside the cabinet and improve the efficiency and saving the cost.
Model | HC-608PMJ | |
Outer dimensions | L1150mm*W530mm*H650mm | |
Weight | 120kg | |
Power supply | 220V | |
Power consumption(220V) | 500W | |
Cutting length | 0.5mm--99999.99mm leaving middle skin more than 100mm | |
Cutting tolerances | ±( 0.1+0.0005×L )mm L : indicates a cutting length. | |
Stripping length | 1mm--30mm | |
Applicable wires | Type | Electrical wire, PVC,AVSS,VSF, IV, KV, UL ,BUR,, BVR, Glass Wire, Battery cable, W1, W2, , etc |
Size | Min wire : 0.5mm2 Max 10mm2 BVR multi strands soft wire cutting stripping and inkjet marking | |
Characters control | Flip,Reverse, bold characters(letters,numbers) | |
USB Interface | IP68 protection grade USB connector | |
Drive supply | Stepping puls motor/Air cylinder transmit belt feeding, eight-wheels drive,independent drive box driver | |
Ink-jet printer | Domino printing | |
